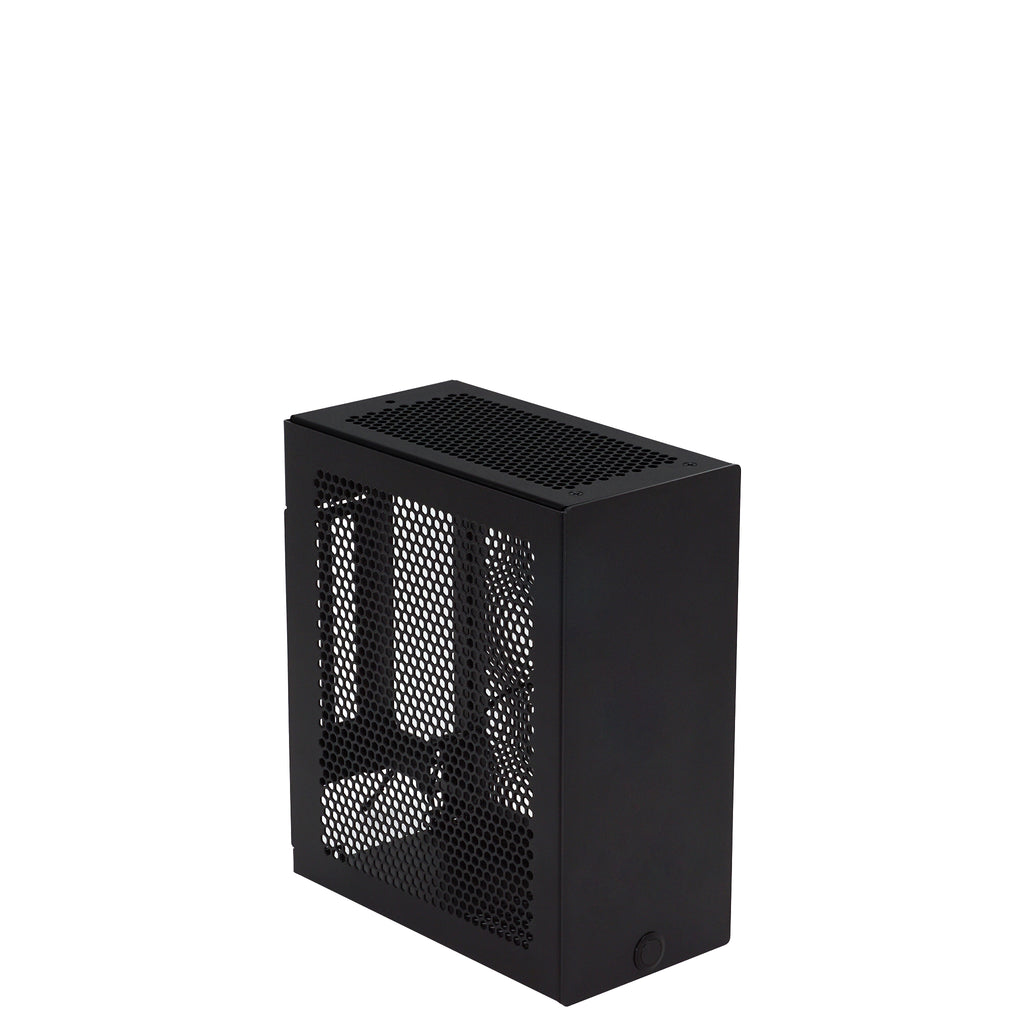

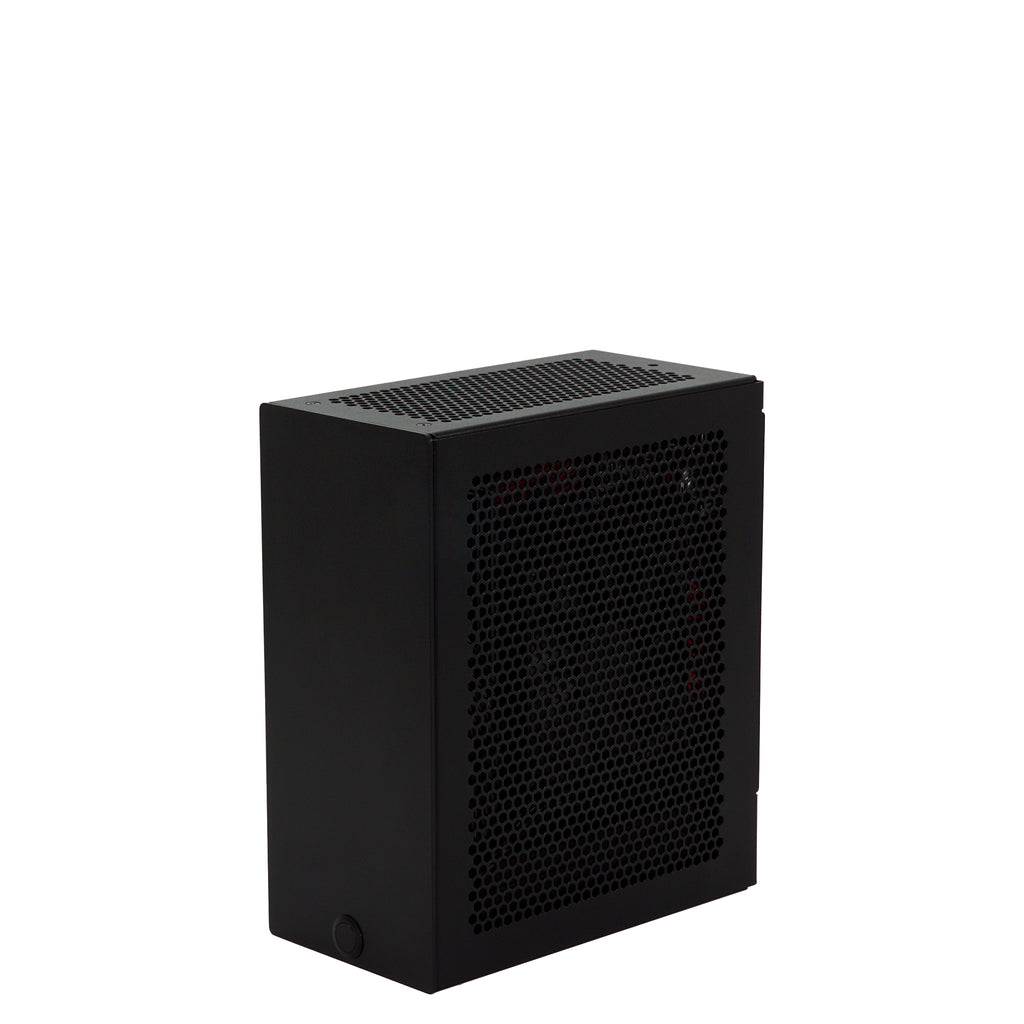

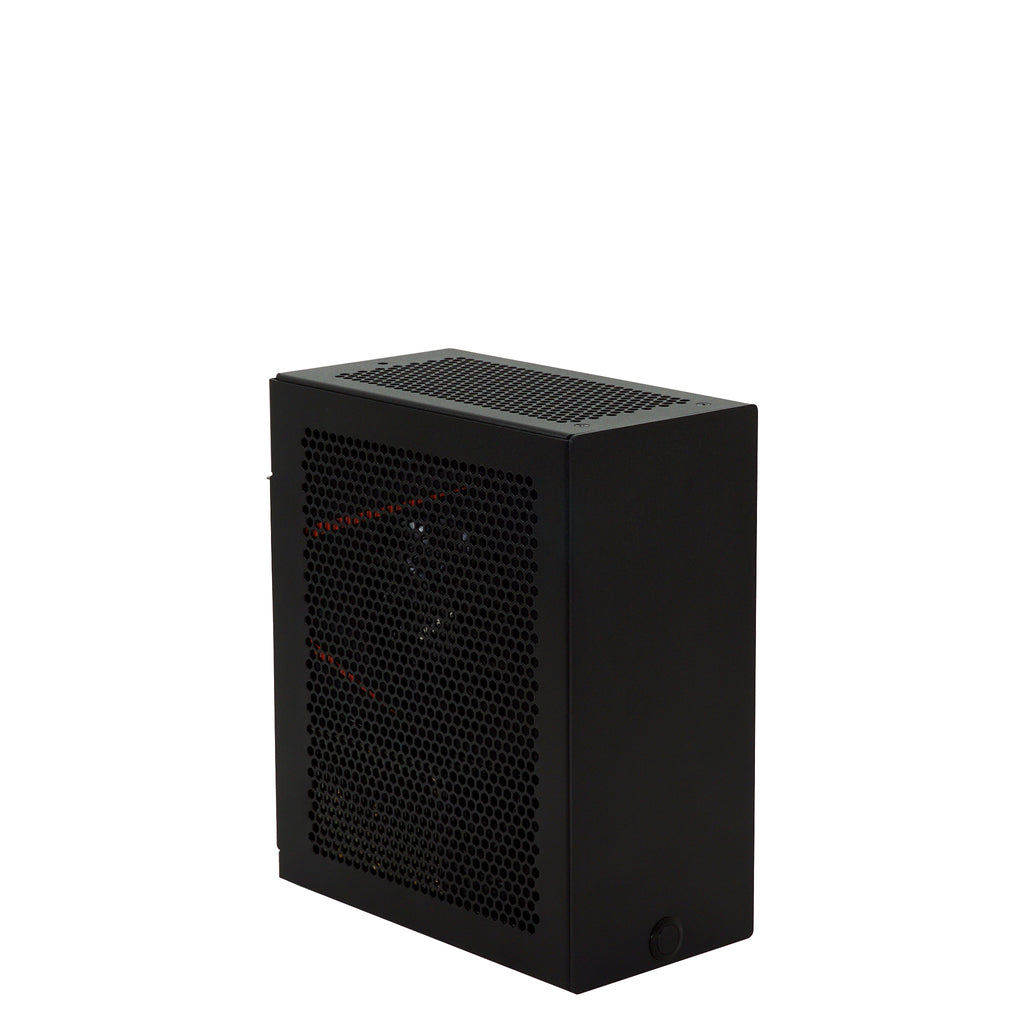

Velka 3 rev 3.0
$159.99 USD
Skip to product information
Velka 3 rev 3.0
$159.99 USD
Free shipping to US, CA, and AU on orders over 159 USD or 239 CAD / AUD. Sales tax collected only in California and Texas.
Overview

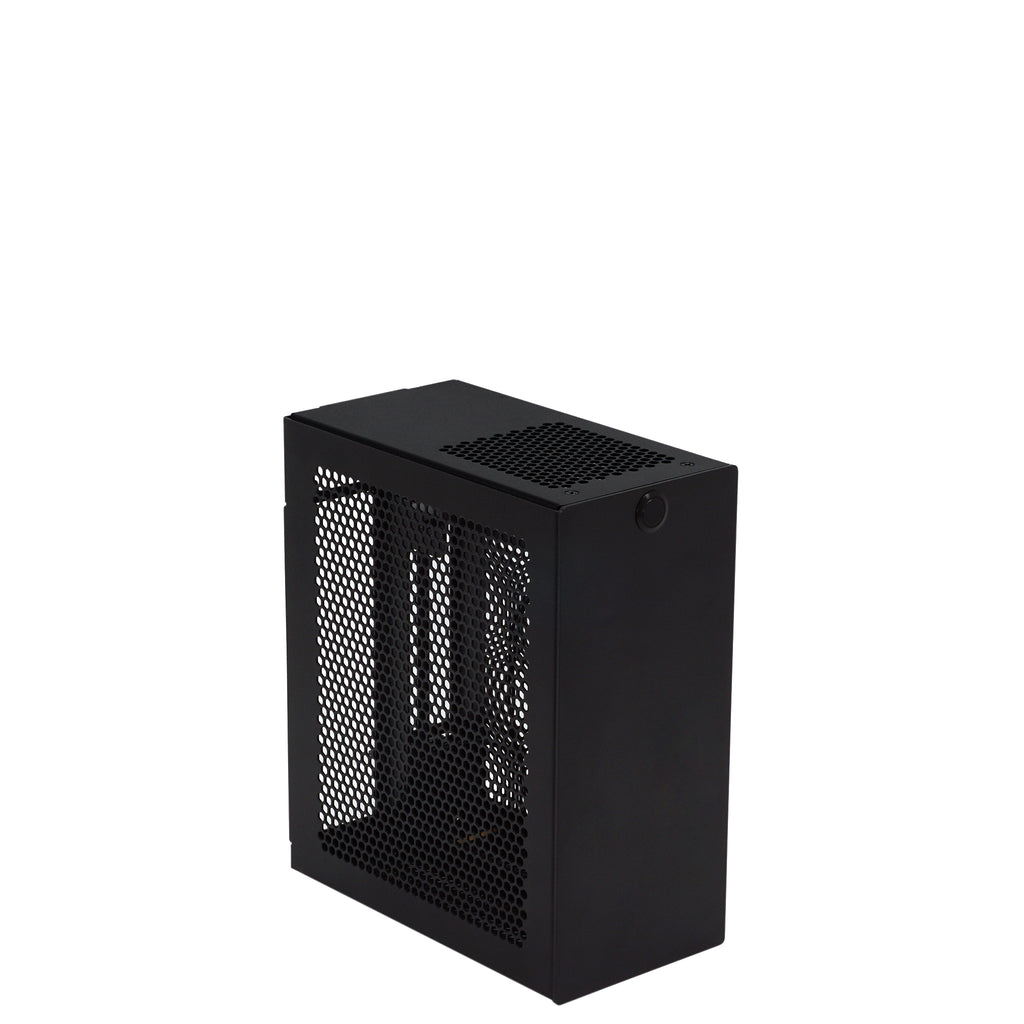

The Velka 3 is the smallest case with ITX length graphics card and internal power supply support at a volume of just 3.99 L.
The latest revision 3.0 features a more eye-pleasing top appearance with a bottom PSU orientation, motherboard compatibility fixes, a more durable textured powdercoat, and full steel construction.
This case is ideal for those who want the smallest physically possible gaming PC. Made from thick steel panels to give each part and the complete build a solid feel.
- 3.99 L volume (3.81 L internal), 182 cm^2 footprint
- Mini ITX compatible
- 37 mm CPU cooler clearance
- Flex ATX power supply compatible (not compatible with SFX)
- 175 mm dual-slot graphics card compatible
- 42 mm memory clearance
Package contents: Case with power button, screws and other hardware, adhesive rubber feet. Not included: PCIe riser cable.
Warranty: 2 years
Country of origin: China
Cancellations and returns
- Orders may be cancelled or changed within 24 hours of order placement
- 30-day returns. Customer is responsible for return shipping costs to Austin, USA. Original shipping charges are not refundable
- 5% restocking fee for new condition returns, 15% restocking fee for used condition returns
| Dimensions | Weight | Volume |
| 184 x 99 x 219 mm 7.2 x 3.9 x 8.6 in |
1.4 kg 3.1 lb |
3.99 L |
| Footprint | Materials | I/O |
| 182 cm^2 28.2 in^2 |
1.0 - 2.0 mm powdercoated galvanized steel | Front: N/A Top: N/A Rear: Motherboard, graphics card |
| CPU cooler | Graphics card (LxWxH) | PCIe riser cable |
| 37 mm | 175 x 43 x 148* mm / 179 x 41 x 148* mm 2.0 PCI slots. 2-slot cards must not protrude past the PCIe bracket edge *148 mm for card + cables, 140 mm for card Cables require 16 mm+ |
Hole pitch: 108 mm 19+ cm double reverse / 22+ cm single reverse / 25+ cm straight |
| Memory | Power supply | Storage |
| 42 mm | Flex ATX, 165 mm max | 1x 2.5” drive (7.0 mm thick) |
| Motherboard | Handles | Case fans |
| Mini ITX (170 x 170 mm) | Hole pitch: 96 mm or 128 mm Screw diameter: 4 mm max |
N/A |
| Internal display cable extensions | External display cables | Security |
| N/A | No restrictions | K-slot (3 x 7 mm) |
Graphics card and PCIe riser cable compatibility list
Revision history
Revision 3.0

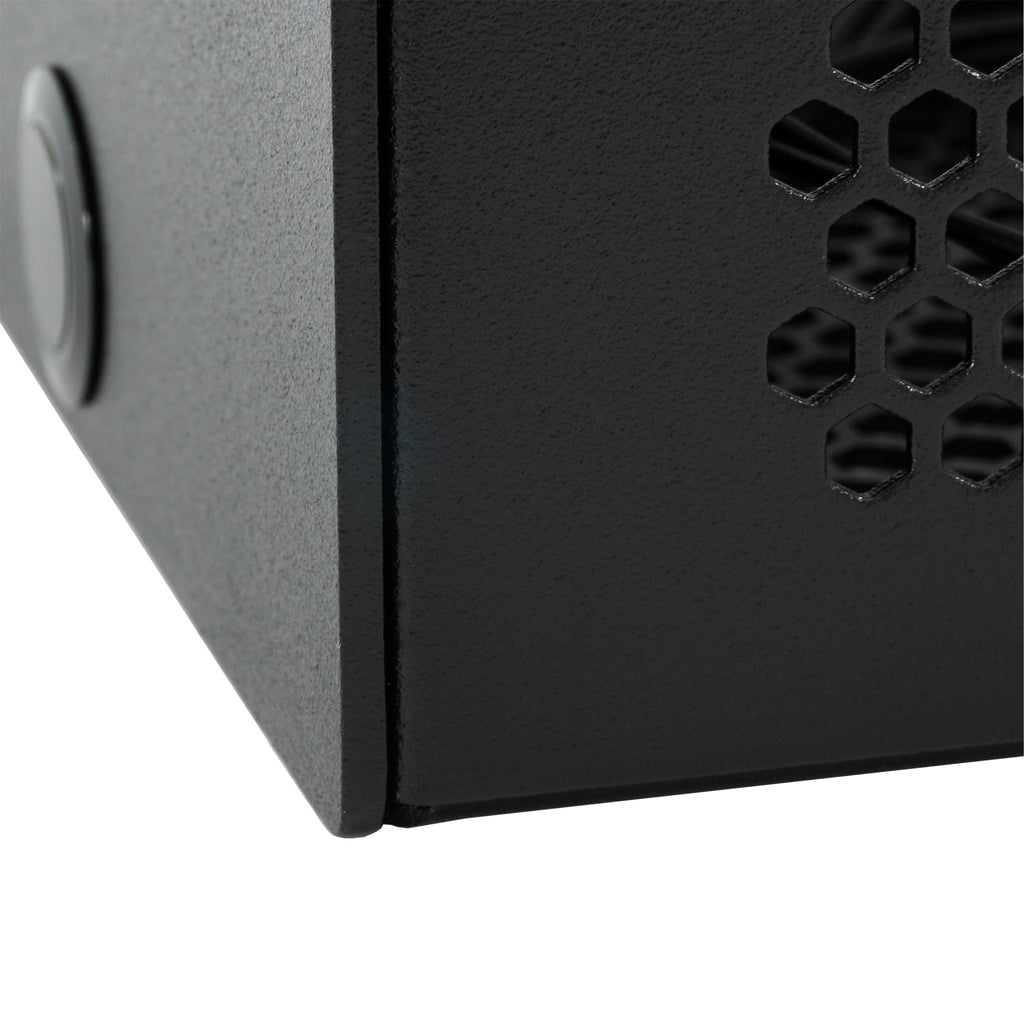

- Textured powdercoat with improved scratch and fingerprint resistance
- Better rubber foot adhesion
- Full powdercoated galvanized steel construction
- Symmetrical top vents when PSU is on the bottom
- Motherboard compatibility fixes
- Slightly fewer screws involved in assembly
- Larger power button without LED
- 5 mm optional side panel offset instead of 2/4 mm. Cleaner appearance when used
Revision 2.1
- introduced PCIe gen 4 cable option
Revision 2.0
- fewer visible exterior screws
- more secure graphics card and motherboard mount
- Flex ATX mount moved to top
- changed vent geometry to honeycomb pattern
- 1.2 mm aluminum and 1.0 mm steel replaced with 1.2 mm steel, 1.0 mm steel, and 5 mm aluminum
- less obtrusive frame edges for easier access while side panels are off
- 2.5” drive compatibility is no longer dependent on CPU socket position and CPU cooler
- limited 2.5” drive compatibility to one 7 mm thick drive
- fixed compatibility issues with motherboards featuring backplates or integrated IO shields
- added option to offset side panels by 4 mm
- added Kensington lock slot
- illuminated power button with soldered wires
- motherboard tray position is no longer adjustable
- removed rear panel gaps resulting from adjustable motherboard position
- removed support for 80x10 mm case fans
- removed support for HDPLEX and PicoPSU power supplies
- only available in black color
Revision 1.2
- 1 mm extra graphics card height clearance, 2 mm extra maximum graphics card length clearance
- support for HDPLEX 400W HiFi DC-ATX with external AC-DC adapter in place of Flex ATX power supply and 1x 2.5” drive
- support for HDPLEX 200W DC-ATX (single slot mode only), MiniBox picoPSU-150-XT / picoPSU-160-XT with external AC-DC adapter and 1x extra 2.5” drive
- removed M3 thumbscrews
- more neutral gray color
Revision 1.1
- black introduced as third color option
- pan head screws replaced by thumbscrews for riser and power supply installation
- plastic zip ties replaced with reusable cable ties for internal and external cable management
- closed rear top and bottom gaps in extended mode
- added option to close one 2 x 16 cm back panel gap when case is used in dual slot mode without expansion card or in single slot mode
- fixed cosmetic defects on front panel near bends
- more symmetrical side panel
- easier 2.5” drive installation on CPU side
- honeycomb perforation on case bottom
- improved compatibility with rear mounted M.2 SSD drives
Revision 1.0
- First release
